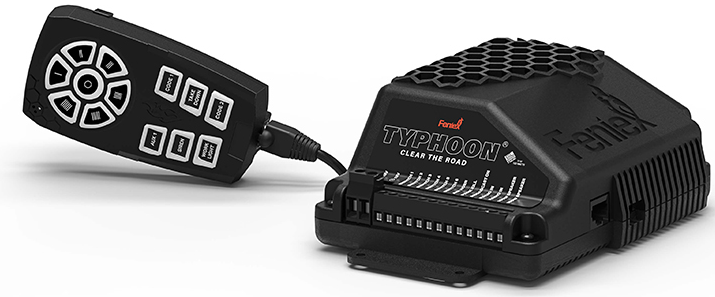

When wiring the Typhoon Hand Held, please remember not to exceed 3.5Amps per button. When you overload the Typhoon Hand Held Controller it may make a sound/perform a function briefly, then turn off. This is a built in safety feature that will help protect the Typhoon Hand Held Controller from electrical surges.
Step 1: Run a 12-14 gauge wire to a known good grounding location, we recommend the batteries negative terminal. Once ran, connect the ground wire to the 12v-DC slot on the Typhoon Hand Held.
Step 2: Run a 12-14 gauge wire to your batteries 12v+ terminal and wire that into the Typhoon Hand Held 12v+DC slot.
Step 3: Begin wiring in your products to the Typhoon Hand Held.
Step 4: Program the buttons on the Typhoon Hand Held Controller to match what you have wired into the unit or desired functionalities.
Step 5: Test Functionality. If some products do not work, please inspect your wiring for defects.
Step 6: If all of your wiring is correct and the product is not overloaded, please contact Feniex Technical Support for assistance (1-800-615-8350)
For all other Typhoon Hand Held Controller inquiries please see the appropriate articles or go to our website and research the literature for this product.
