Wiring the Triton Speaker



Step 1: Ohm out the speaker on a bench to ensure the speaker is functioning properly before install.

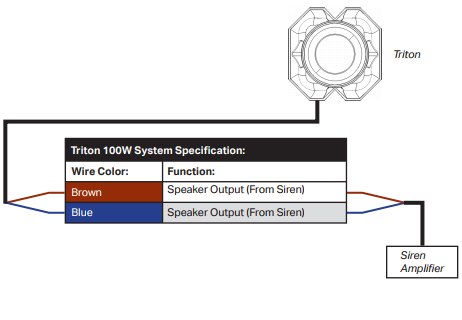

Step 2: Wire the Triton into your Siren Amplifier using the Blue and Brown wires.

Step 3: Test functionality. If no sound emits from the Triton and you wiring is correct, inspect your siren amplifier.

Step 4: If all of your wiring is correct and the siren amplifier is functioning properly, please contact Feniex Technical Support for assistance (1-800-615-8350).

For all other Triton speaker inquiries please see the appropriate articles or go to our website and research the literature for this product.
