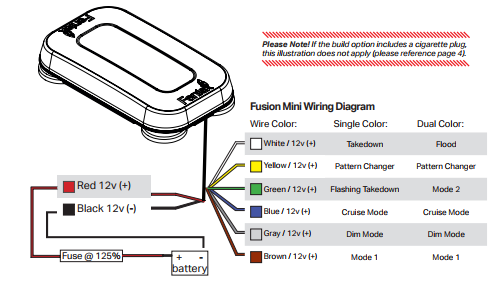

Step 1: To activate the unit, extend the red wire to the 12v+ post of the vehicle’s
battery. Extend the black wire to the ground post of the vehicle.
Step 2: To turn the lightbar on, connect the brown wire to a 12v+ switch.
Step 3: To change flash patterns, momentarily connect the yellow wire on a 12v+ source.
Step 4: For takedown steady functionality, connect the white wire to a 12v+ post (switch).
Step 5: For takedown flashing, connect the green wire to a 12v+ post for single color system.
Step 6: To activate mode 2 for dual color systems; connect the green wire to a 12v+ post.
Step 7: To activate Cruise Mode; connect the blue wire to a 12v+ post.
Step 8: To activate Dim Mode; connect the gray wire to a 12v+ post.
Step 9: If all of your wiring is correct, controller working properly, and the fuse is not blown yet the Fusion Mini Light bar is not functioning properly, please contact Feniex Technical Support for assistance (1-800-615-8350).
For all other Fusion Mini Lightbar inquiries please see the appropriate articles or go to our website and research the literature for this product.
