Legacy Products Wiring Diagrams
      Back to home
      1. Help Center
      2. Technical Support
      3. Legacy Products Wiring Diagrams

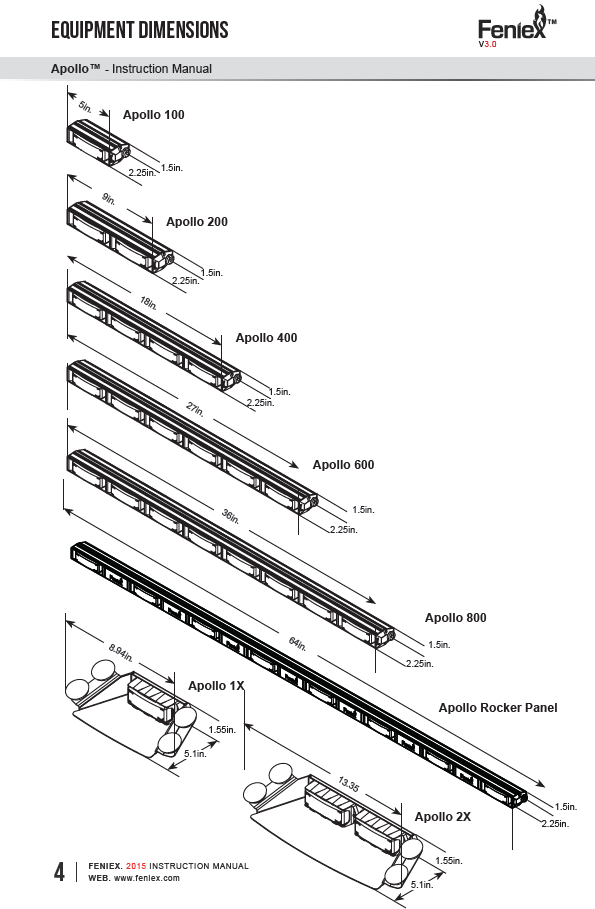

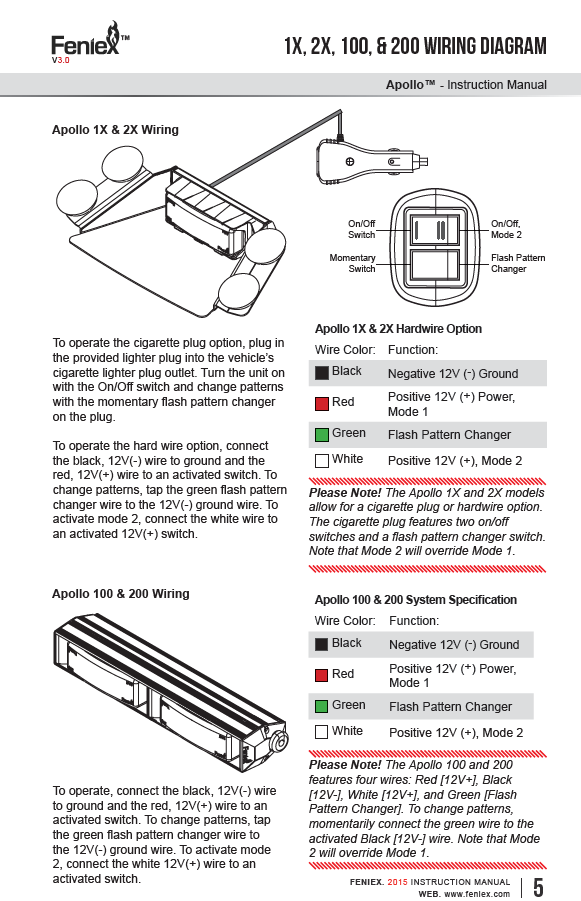

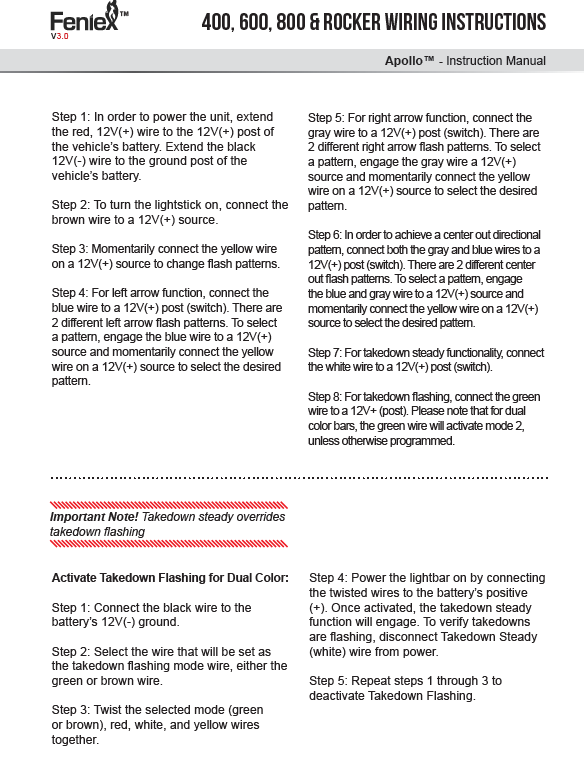

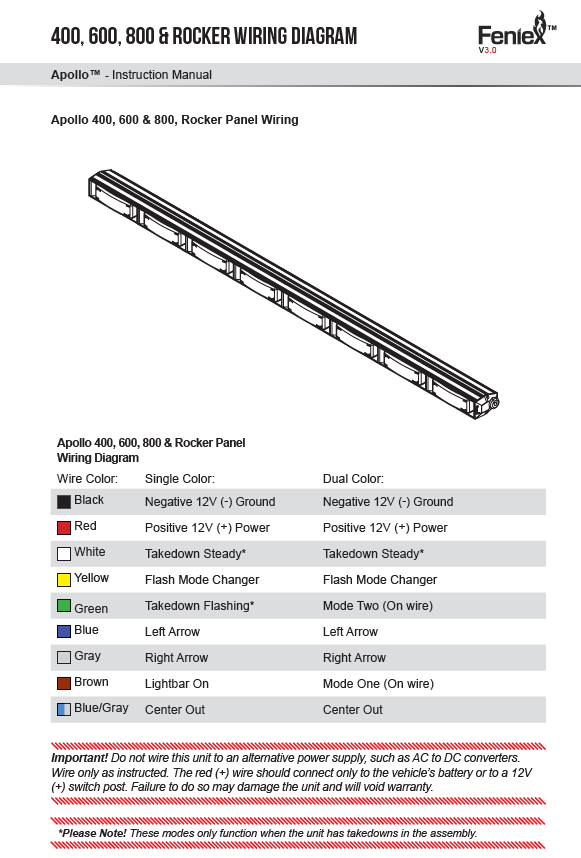

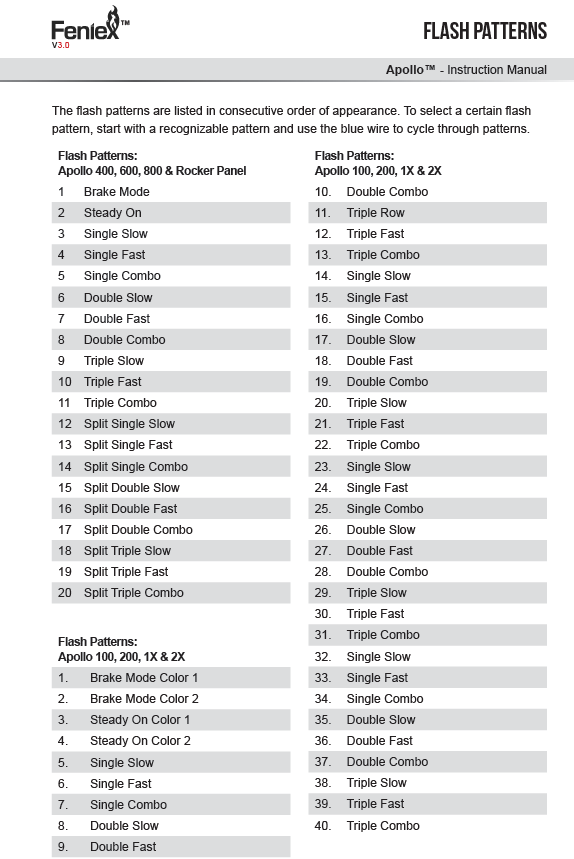

      Wiring Diagram for Apollo 1X, 2X, 100, 200, 400, 600, 800, and Rocker Panel

      If you are still having issues with your Apollo 1X, 2X, 100, 200, 400, 600, 800, or Rocker Panel please contact Technical Support at techsupport@feniex.com or 1-800-615-8350.

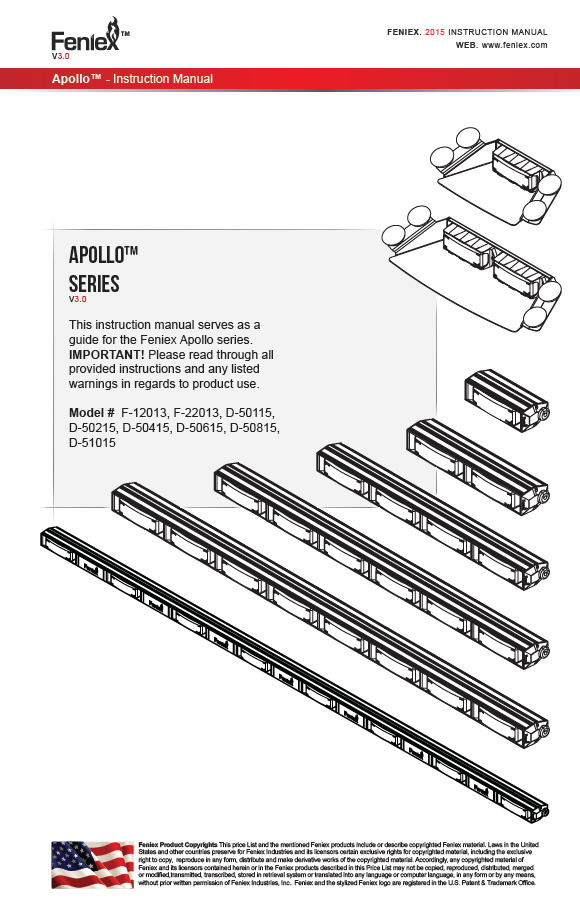

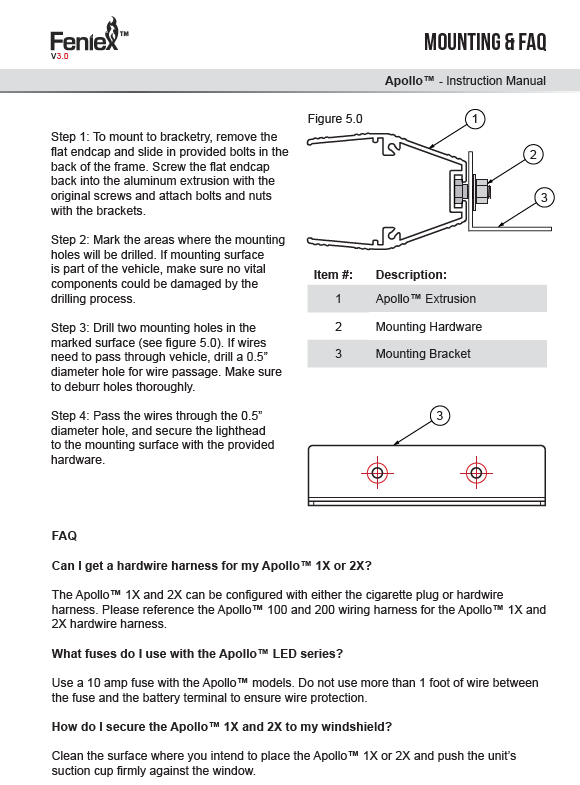

      For the full instruction manual please download the PDF from the link below:
