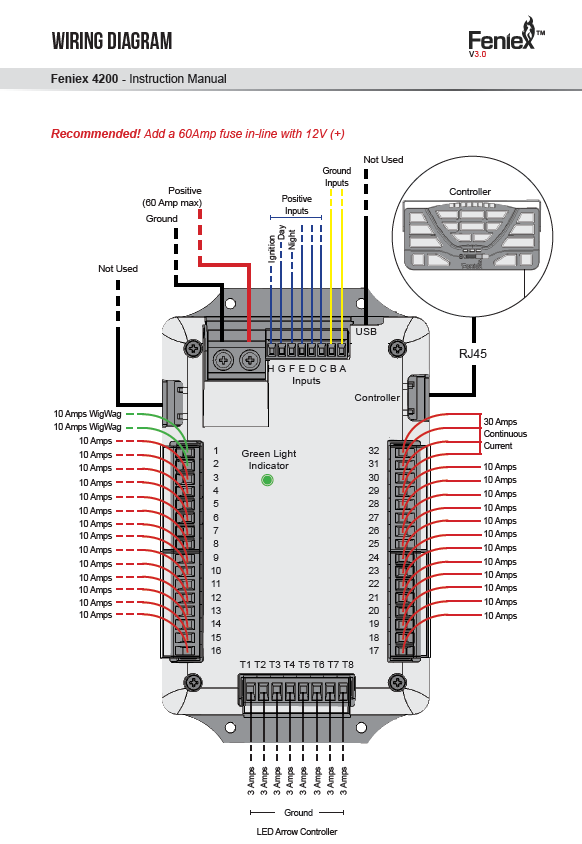

Wiring Diagram for 4200 (NON-DATALINK) Controller

If you are still having issues with your non data link 4200 controller please contact Technical Support at techsupport@feniex.com or 1-800-615-8350.

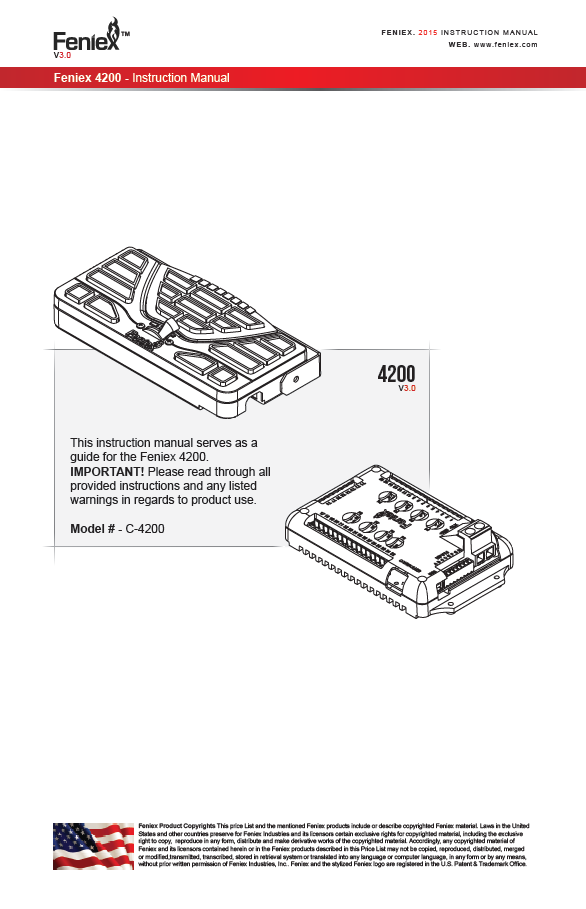

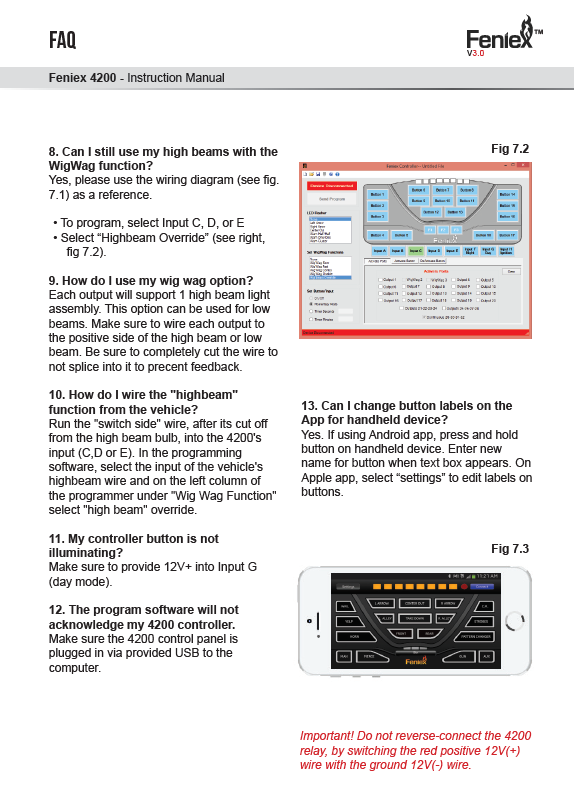

For the full instruction manual please download the PDF from the link below:
