Step 1: Apply ground (-) connection to Black wire on light stick

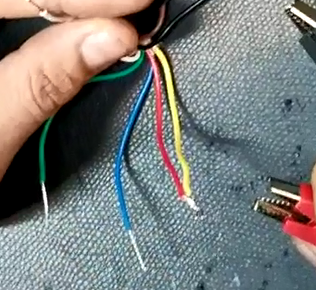

Step 2: Twist yellow and red wires together before applying power (+)
Step 3: Apply 12v (+) to twisted together yellow/red wires

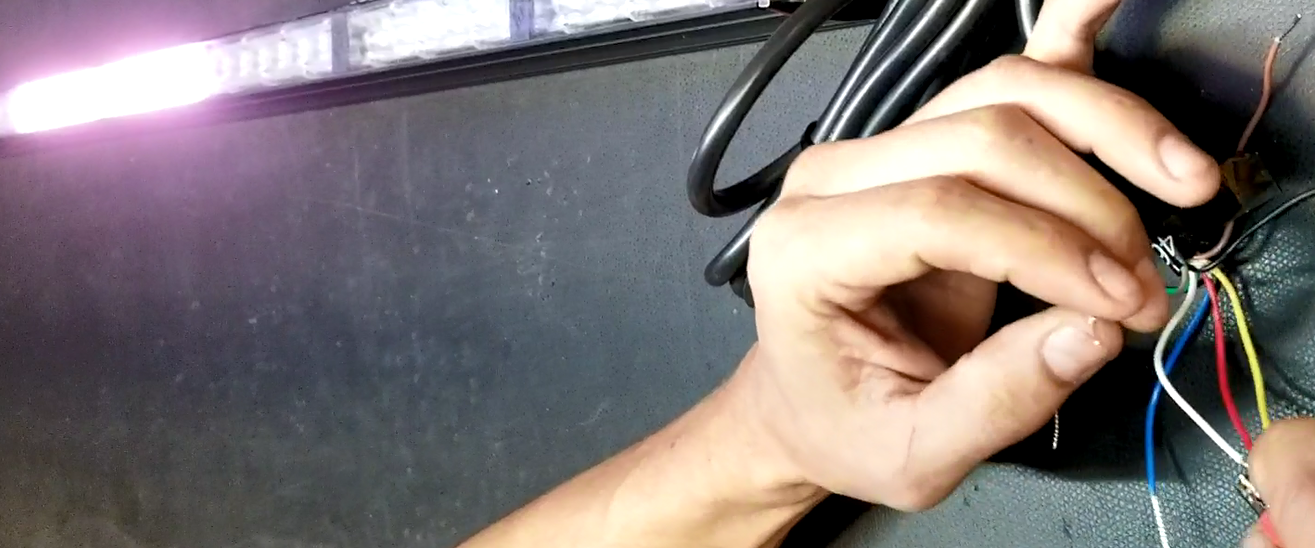

Step 4: Tap white wire to positive (+) connection until lights turn on. Continue to hold white wire and advance to step 5 within 3-5 seconds.

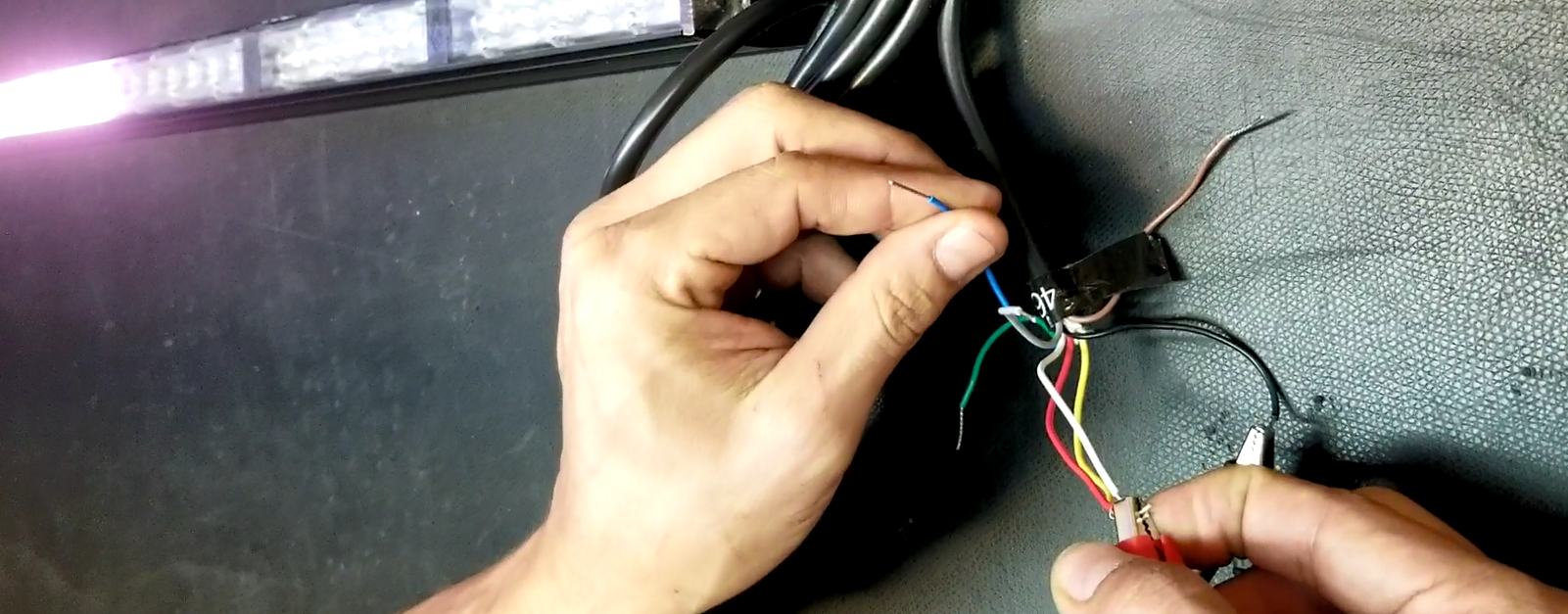

Step 5: Apply blue or gray wire within 3-5 seconds to positive (+) connection and continue to hold to cycle through takedowns. Blue is for driver side and gray is for passenger side.
***NOTE: If the lights do not cycle you may have taken too long to apply the blue or gray wire. Return to step 1 and repeat process***
Step 6: Release wire that you are using to cycle through takedowns and the takedown position will be saved on your lightstick.
Step 7: If you are having issues with this process we have a video guide that may help. Please contact technical support for assistance and we will figure out what is going on with your lightstick.
